Amtrol 141-305

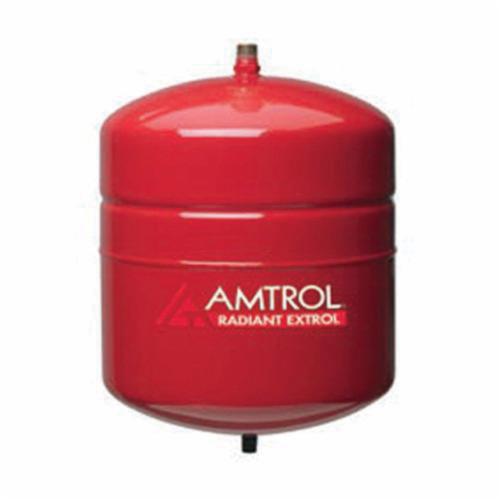

Amtrol Radiant Extrol® RX-30 Steel 100 psig In-Line Model Specialty Expansion Tank, 4.4 gal, 11 Inch Dia x 16 Inch H

  • Mfg. Name: Amtrol
  • Brand Name: Amtrol
  • MPN: 141-305
  • PSCN: 8765
  • UPC: 642031413307
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Amtrol designed and patented the first Extrol diaphragm expansion tank in 1954 to control system pressure and help reduce energy consumption in heating and chilled water systems. Over six decades later, Extrol is still the world's leading expansion tank brand, setting the standard for quality, reliability and innovation. All Extrol tanks are made in the USA at our ISO registered facilities by American workers dedicated to producing the highest quality expansion tanks in the world.

  • Utilizes internal plastic liner for corrosion resistance in system with high oxygen content or non-barrier tubing
  • Pre-charge should be adjusted to equal system fill pressure
  • Brass fitting polypropylene liner for corrosion resistance
  • For high-efficiency radiant systems
  • Plastic liner is compatible with barrier and non-barrier tubing
  • Non-ferrous system connection for corrosion resistance
  • 5-year limited warranty

Standard/Approvals: ISO Certified

Application: For Use In High Efficiency Radiant Heating Systems, Glycol Applications

Brand : Amtrol
Sub Brand : Radiant Extrol®
Series/Model : RX-30
Item Name : Expansion Tank
Type : In-Line Model
Capacity : 4.4 gal
Connection Type : NPTM
Connection Size : 1/2 Inch
Diameter : 11 Inch
Height : 16 Inch
Maximum Working Pressure : 100 psi
Material : Steel Shell and System Connection, Projection Welded Air Valve, Heavy-Duty Butyl/EPDM Diaphragm
Finish : Urethane Topcoat
Maximum Temperature : 240 deg F
Precharge Pressure : 12 psi
