Amtrol 102-1

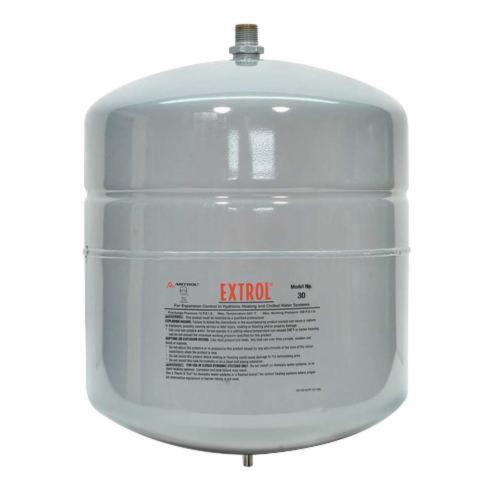

Amtrol Extrol® EX-30 Steel 100 psig In-Line Model Expansion Tank, 4.4 gal, 11 Inch Dia x 16 Inch H

  • Mfg. Name: Amtrol
  • Brand Name: Amtrol
  • MPN: 102-1
  • PSCN: 5644
  • UPC: 642031113061
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Amtrol designed and patented the first Extrol diaphragm expansion tank in 1954 to control system pressure and help reduce energy consumption in heating and chilled water systems. Over six decades later, Extrol is still the world's leading expansion tank brand, setting the standard for quality, reliability and innovation. All Extrol tanks are made in the USA at our ISO registered facilities by American workers dedicated to producing the highest quality expansion tanks in the world.

  • Pre-charge should be adjusted to equal minimum operating pressure at tank location
  • Accepts expanded water as system temperature rises to reduce pressure build-up
  • System connection sets the point of no pressure change
  • Water-tight reservoir for expanded water
  • Sealed air cushion - factory pre-charged and 100% tested
  • Deep-drawn steel tank
  • Air stem for pre-charge adjustment

Standard/Approvals: ISO Certified

Application: For Use With Closed Hydronic Heating And Cooling Systems

Brand : Amtrol
Sub Brand : Extrol®
Series/Model : EX-30
Item Name : Expansion Tank
Type : In-Line Model
Capacity : 4.4 gal
Connection Type : NPTM
Connection Size : 1/2 Inch
Diameter : 11 Inch
Height : 16 Inch
Maximum Working Pressure : 100 psi
Material : Steel Shell and System Connection, Projection Welded Air Valve, Heavy-Duty Butyl/EPDM Diaphragm
Finish : Urethane Topcoat
Maximum Temperature : 240 deg F
Precharge Pressure : 12 psi
