Honeywell AT72D1683

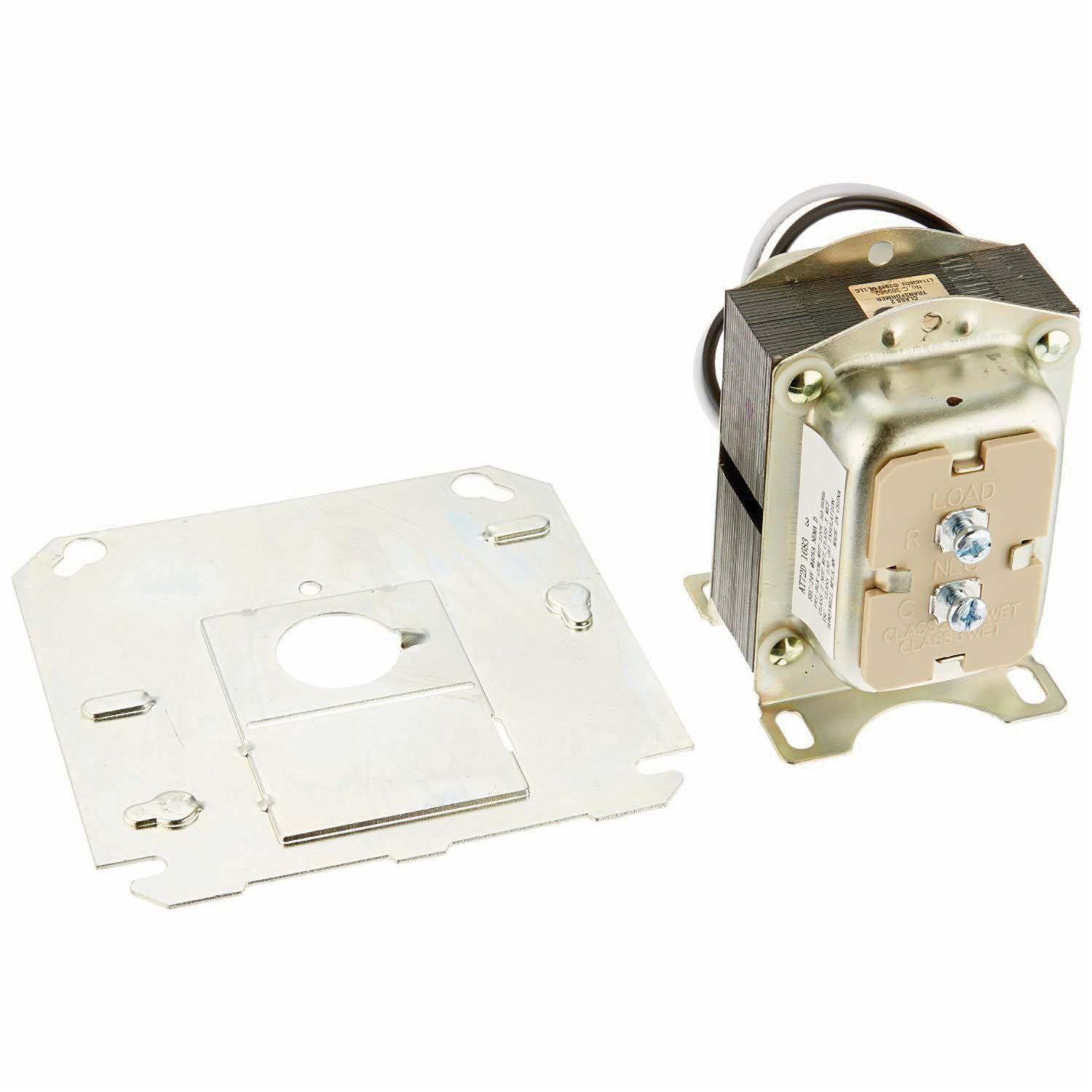

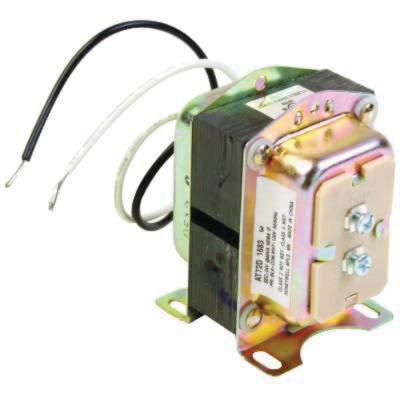

Honeywell AT72D1683 Transformer, 120 VAC Primary, 26.5 V.O.C Secondary, 40 VA

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: AT72D1683
  • PSCN: 1927
  • UPC: 085267990103
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Override protection
  • Color-coded leadwires for primary connections
  • Energy limiting and meets NEMA standard DC20-1992
  • Transformers are marked NEMA Type D enclosure

Standard/Approvals: CSA Certified, Meets NEC Class 2 Not Wet, Class 3 Wet And UL 1585 Requirements

Brand : Honeywell
Item Name : Transformer
Voltage Rating : 120 VAC Primary, 26.5 V Secondary
Connection Type : 9 Inch Leadwires Primary, (2) Screw Terminals
Temperature Rating : -20 to 105 deg F
Frequency Rating : 50/60 Hz
Length : 2-7/32 Inch
Width : 3-1/16 Inch
Height : 3-7/32 Inch
Includes : Thermostats, Gas Valves and Relays
