Dunham Bush C5940

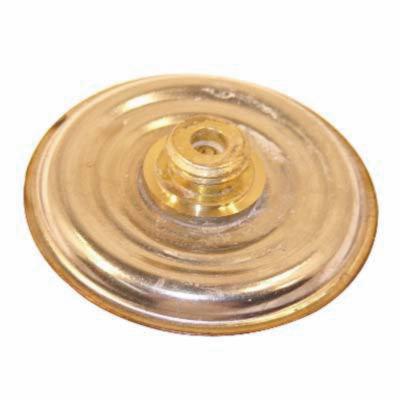

Dunham Bush C5940 Thermostatic Disc (12/Pack) For Use in Both Radiator/Fin Tube Heating Applications Along With Float and Thermostatic Traps Used For Steam Return Mains

  • Mfg. Name: Dunham Bush
  • Brand Name: Dunham Bush
  • MPN: C5940
  • PSCN: 10195
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Thermostatic discs or elements are a sealed liquid filled capsule that close to keep the steam contained in the heating apparatus, and open to allow the discharge of air and condensate when it cools
  • When steam is present the heat expands the fluid within the capsule causing it to push its outer plunger into discharge seat sealing the steam
  • As the steam cools it causes the liquid to contract which raises the plunger allowing the air and condensate to discharge

Application: For Use In Both Radiator Or Fin Tube Heating Applications Along With Float And Thermostatic Traps Used For Steam Return Mains

Brand : Dunham Bush
Item Name : Thermostatic Disc
For Use With : 1/2 Inch 1E Series Radiator Traps All Patterns, 40/44/46/48 Series Float and Thermostatic Traps All Sizes with Pressures 15, 30 lb and 30-2A, 30-4, 30-5, 30-7A Float and Thermostatic Traps
