Tekmar 518

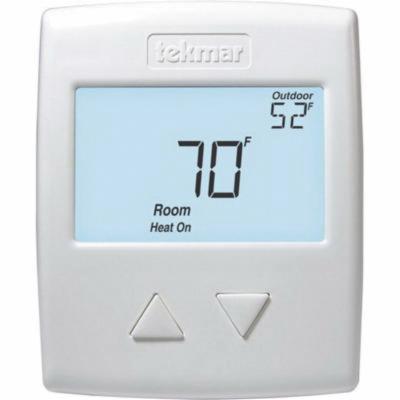

Tekmar 518 Thermostat, 10 - 30 VAC/VDC, 1-Heat Stage

  • Mfg. Name: Tekmar
  • Brand Name: Tekmar
  • MPN: 518
  • PSCN: 402443
  • UPC: 779655051803
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The thermostat 518 accurately controls the room temperature for a hydronic heating zone using pulse width modulation (PWM) technology. Simple up and down buttons and a display with large type make this thermostat easy to read and use. The 518 automatically detects a single auxiliary sensor to measure either outdoor, floor or remote room temperature. This easy to install thermostat is a direct replacement for tekmar thermostats 507 and 508. An optional adaptor plate 012 is available which allows the thermostat to be installed onto a single gang electrical box.

  • Auto heating cycle
  • Auxiliary sensor input
  • Freeze protection
  • Outdoor and floor temperature display
  • Pulse width modulation
  • Radiant floor heating
  • Microprocessor control
  • Indoor use only
  • 3-year limited warranty

Standard/Approvals: Meets Class B: ICES and FCC Part 15

Brand : Tekmar
Item Name : Thermostat
Number Of Heat Stages : 1
Display : Backlight
Remote Sensing Capability : Yes
Voltage Rating : 10 - 30 VAC/VDC
Frequency Rating : 50/60 Hz
Material : PVC Plastic
Color : White
Height : 3-11/16 Inch
Width : 3 Inch
Depth : 15/16 Inch
Operating Humidity : 90% RH, Non-Condensing
Sensor Element : NTC Thermistor, 10 Kohm at 77 deg F
