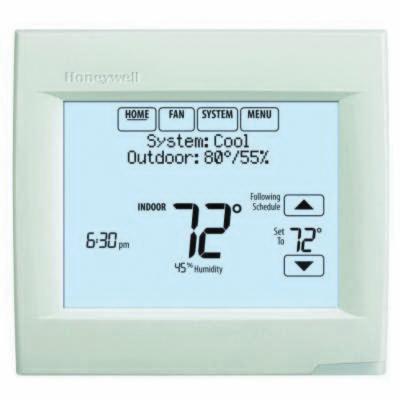

Honeywell TH8321R1001

Honeywell VisionPro® 8000 RedLINK™ TH8321R1001 Programmable Thermostat, 18 - 30 VAC or 750 mV, 2/3/4 Stage Heat and 2 Stage Cool

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: TH8321R1001
  • PSCN: 406908
  • UPC: 085267770439
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

VisionPRO® 8000 with RedLINK™ is a 7 day programmable touchscreen thermostat that is selectable for residential or light commercial use. The thermostat can be wired directly to the equipment, used with the THM5421R1021 equipment interface module or used with the THM4000R1000 TrueZONE wireless adapter. Works with the RedLINK™ accessories including the RedLINK™ internet gateway, portable comfort control, wireless outdoor sensor, wireless indoor sensor, wireless entry/exit remote and wireless vent and filter boost remote.

  • Smart schedule - programs in seconds for any lifestyle
  • Patented interview based programming and installer setup
  • Selectable for residential and light commercial applications
  • Light commercial - commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day
  • Plain language setup, no manual needed
  • Alerts and user interactions log - Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error
  • Customizable service reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts
  • MicroSD port for copying the installer setup, customizable reminders, custom events and holidays to multiple thermostats
  • MicroSD port for adding the dealer's contact information on the screen
  • 1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating/cooling
  • 3 assignable outputs on the Equipment Interface Module to control humidification, dehumidification, ventilation or a stage of heating/cooling
  • 1 assignable input can be used with a wired outdoor, indoor or discharge sensor
  • 4 assignable inputs on the equipment interface module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak
  • Extend wireless range of the equipment interface module by connecting a THM4000R1000 wireless adapter to the ABCD terminals
  • Precise temperature control (+/- 1 deg F) for reliable and consistent temperature, multiple staging options to provide comfort or energy savings
  • UN 3091 lithium metal batteries packed in/with equipment

Standard/Approvals: Title 24 Compliant

Application: For Upto 3 Heat/2 Cool Heat Pumps, Upto 2 Heat/2 Cool Conventional Systems

Brand : Honeywell
Sub Brand : VisionPro® 8000, RedLINK™
Item Name : Thermostat
Type : Programmable
Number Of Heat Stages : 2 or 3 or 4
Number Of Cool Stages : 2
Terminal Designation : R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1
Display : 10 sq-Inch Touchscreen
Key Pad Lockout : Yes
Automatic Changeover : Yes
Remote Sensing Capability : Yes
Temporary Temperature Hold : Yes
Filter Indicator : Yes
Temperature Limiting : Yes
Setting Temperature Range : 40 - 90 deg F (Heat), 50 - 99 deg F (Cool)
Low Battery Indicator : Yes
Batteries Included : Yes
Power Source : Battery or Hardwired
Voltage Rating : 18 - 30 VAC or 750 mV
Frequency Rating : 50/60 Hz
Switch Positions : Heat-Off-Cool-Auto-Em.Heat (System), Auto-On-Circ-Follow Schedule (Fan)
Changeover : Auto/Manual
Color : Arctic White
Height : 4-5/8 Inch
Width : 4-15/16 Inch
Depth : 1-1/8 Inch
Includes : Batteries
For Use With : Works Standalone or with Optional THM5421R1021 Equipment Interface Module and Redlink™ Accessories
Connection Type : Screw Terminal
Operating Humidity : 5 - 90% RH, Non-Condensing
Operating Temperature : 32 - 120 deg F
Programmability : 7-Day Multiple Day Programming/Non-Programmable
