Honeywell TH6220D1002

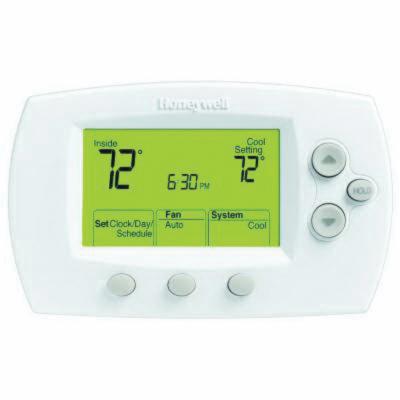

Honeywell FocusPRO® 6000 TH6220D1002 Programmable Thermostat, 20 - 30 VAC or 750 mV, 2 Stage Heat/Cool

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: TH6220D1002
  • PSCN: 14943
  • UPC: 85267262019
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Honeywell's FocusPRO® 6000 digital thermostat offers the perfect blend of features, performance, energy savings and value. With the largest backlit screen in its class, the FocusPRO 6000 prominently displays both room and set temperature.

  • Selectable to 5-1-1 (weekdays, saturday, sunday) or 5-2 (weekdays, weekend) programmable thermostat
  • Large, clear, backlit display - easy to read in various lighting conditions
  • Precise comfort control (+/-1 deg F) - maintains consistent comfort to the highest level of accuracy
  • Simplified programming and operation
  • Easy change battery door - flip out door allows for easy battery replacement without removing or disassembling the thermostat
  • Built-in instructions - simple, pull out instruction manual
  • Adaptive Intelligent Recovery™ - ensures programmed temperature is reached by programmed time
  • Temperature range stops - prevents user from setting the temperature too high or too low

Application: For Heat/Cool or Heat Pump with Auxiliary Heat

Brand : Honeywell
Sub Brand : FocusPro® 6000
Item Name : Thermostat
Type : Programmable
Number Of Heat Stages : 2
Number Of Cool Stages : 2
Terminal Designation : R, RC, C, W-O/B, G, Y, W2-AUX/E, Y2-L
Display : 3-3/4 sq-Inch Standard
Key Pad Lockout : No
Remote Sensing Capability : No
Temporary Temperature Hold : Yes
Setting Temperature Range : 40 - 90 deg F (Heat), 50 - 99 deg F (Cool)
Low Battery Indicator : Yes
Batteries Included : Yes
Power Source : Battery or Hardwired
Voltage Rating : 20 - 30 VAC or 750 mV
Amperage Rating : Cool: Y = 0.02 A to 1.0 A Running, Y2 = 0.02 A to 1.0 A Running, Heat: W = 0.02 A to 1.0 A Running; W2 (AUX) = 0.02 A to 0.5 A Running; E = 0.02 A to 1.0 A Running, Fan: 0.02 A to 0.5 A Running
Frequency Rating : 50/60 Hz
Switch Positions : Heat-Off-Cool-Auto-Em.Heat (System), Auto-On (Fan)
Changeover : Auto/Manual
Color : Premier White®
Height : 3-9/16 Inch
Width : 5-13/16 Inch
Depth : 1-1/2 Inch
Includes : (2) AA Batteries
For Use With : Dual Transformer
Operating Humidity : 5 - 90% RH, Non-Condensing
Programmability : 5 - 1 - 1 Day Program or 5 - 2 Day Program
