Little Giant 554405

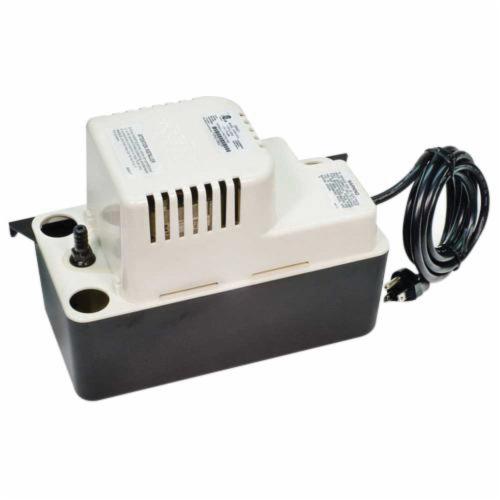

Little Giant VCMA-15ULS Automatic Condensate Pump, 1/2 gal, 115 V

  • Mfg. Name: Little Giant
  • Brand Name: Little Giant
  • MPN: 554405
  • PSCN: 26094
  • UPC: 010121544055
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Little Giant's VCMA-15ULS, 65 GPH automatic condensate removal pump with safety switch defines state-of-the-art pump design, adding features for every installation, with guaranteed serviceability and reliability.

  • Safety switch - can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow
  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • Models equipped with safety overflow switch include two 5 Inch switch lead wires
  • 3/8 Inch outer diameter barbed discharge adapter with built-in check valve
  • Three 1-1/8 Inch diameter inlet openings (two fitted with removable cap plug)
  • Thermally protected, fan cooled motor
  • Built-in wall mount tabs on tank
  • Removable pump float locking tab for safety during transportation (remove at time of installation)

Standard/Approvals: C/US CSA Certified

Application: For Automatic Collection And Removal Of Condensate From Air Conditioning, Refrigeration And Dehumidification Equipment When Gravity Drainage Is Not Possible Or Practical, Suitable For High Efficiency Oil And Gas-Fired Condensing Furnace And Condensing Boiler Equipment

Brand : Little Giant
Item Name : Automatic Condensate Pump
Series/Model : VCMA-15 Series
Mounting Type : Vertical
Tank Capacity : 1/2 gal
Amperage Rating : 1 A
Voltage Rating : 115 V
Wattage Rating : 60 W
HP Rating : 1/50 hp
GPH of Water at 20 Ft. of Head : 25 gph
GPH of Water at 5 Ft. of Head : 50 gph
GPH of Water at 1 Ft. of Head : 65 gph
Height : 7 Inch
Width : 10-1/2 Inch
Depth : 5 Inch
Flow Rate : 65 gph
Temperature Range : 120 deg F Intermittent
Material : ABS Tank/Cover/Volute, Polypropylene Float
Cord Length : 6 ft
Shaft Material : Stainless Steel
Shut-Off Head : 15 ft
Discharge : 3/8 Inch Barb
Includes : Check Valve, Safety Switch, 6 ft Power Cord, Thermal Overload Protector, Nylon Sump Pan, Control Float, Filter Screen
