DiversiTech CP-22

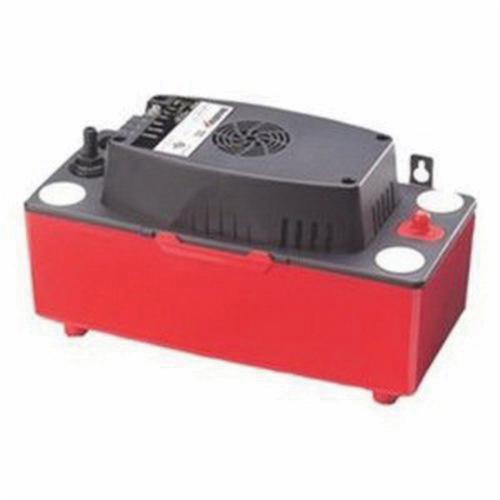

DiversiTech CP Series Condensate Pump, 1/2 gal, 120 VAC

  • Mfg. Name: DiversiTech
  • Brand Name: DiversiTech
  • MPN: CP-22
  • PSCN: 2596
  • UPC: 095247091263
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

This product is designed to automatically pump condensate produced by high efficiency boilers and humidifiers up to 22 ft vertically once the level of condensate in the tank reaches a specified level. The CP-22 is suitable for use with condensate from HVAC systems including high efficiency furnaces and humidifiers which produce acidic condensate. This rugged pump has 22 ft of lift, compared to the typical 20 ft. The CP-22 has a number of features and benefits including vibration dampening feet and motor mounts, metal hang tabs, four versatile inlet holes, an easy to understand indicator display, a simple float switch and check valve. Integrating the CP-22 into your system is easy. 1/4 Inch quick connect terminals provide easy connection to the built in overflow switch. Two terminals are provided allowing the installer flexibility to connect air handler shut-down. Switch features SPDT isolated contacts ready for connection to building automation systems.

  • Vibration dampening feet and motor mounts, metal hang tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, oat Switch and duckbill-style check valve, plug protector and detailed installation instructions
  • Two terminals are provided allowing the installer flexibility to connect air-handler shut-down an important safety consideration

Standard/Approvals: UL Listed, CSA Certified

Application: For High Efficiency Furnaces And Humidifiers

Brand : DiversiTech
Item Name : Condensate Pump
Series/Model : CP Series
Tank Capacity : 1/2 gal
Amperage Rating : 1.9 A
Voltage Rating : 120 VAC
Frequency Rating : 60 Hz
Height : 6.7 Inch
Width : 11.8 Inch
Depth : 5.9 Inch
Flow Rate : 1.6 gpm
Temperature Range : 140 deg F Continuous, 160 deg F Inlet
Cord Length : 4 ft
Lift : 22 ft
Shut-Off Head : 22 ft
Discharge : 3/8 Inch
Includes : Vibration Dampening Feet and Motor Mounts A Simple Float Switch and Check Valve, Instruction Booklet, Metal Hang Tabs, Plug Protector, 4 ft Remote Shutoff Leads with Insulated Terminals, (3) Polyethylene Inlet Covers
