Grundfos 52722330

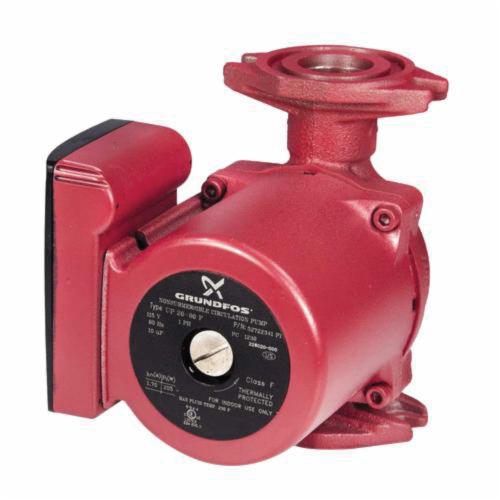

Grundfos UP26-64F Cast Iron 1-Speed Circulator Pump, 1/12 hp, 32.1 gpm

  • Mfg. Name: Grundfos
  • Brand Name: Grundfos
  • MPN: 52722330
  • PSCN: 4066
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.

  • Ceramic shaft and radial bearings
  • Stainless steel rotor can and bearing plate
  • Built-in motor protection for longer life and better performance
  • Whisper-quiet operation for sound sensitive installations
  • Includes (2) gaskets (o-rings)

Standard/Approvals: UL Listed, CSA Certified

Application: For Use In Hydronic Heating, Radiant Floor Heating, Fan Coils, Snow Melting And Many Others

Brand : Grundfos
Item Name : Circulator Pump
Series/Model : UP26-64F
Type : 1-Speed
Connection Type : GF 15/26 Flange
HP Rating : 1/12 hp
Maximum Flow : 32.1 gpm
Voltage Rating : 115 V
Material : Cast Iron
Impeller Material : PES Composite
Amperage Rating : 1.7 A (3-Speed)
Pressure Rating : 145 psi
Temperature Rating : Liquid: 35.6 to 230 deg F
Maximum Head : 24.6 ft
RPM : 2650 Rpm
Phase : 1
Number Of Poles : 2
Dimension : 6-1/2 Inch Height x 6-3/8 Inch Width x 5.56 Inch Depth
Frequency Rating : 60 Hz
Wattage Rating : 185 W
Thermal Protection : Internal
