Grundfos 59896341

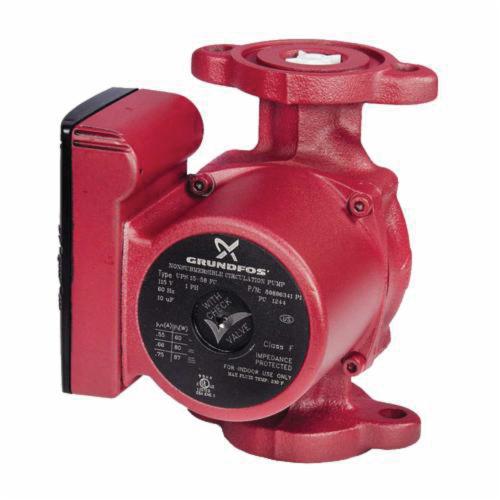

Grundfos UPS15-58FC Cast Iron 3-Speed Small Stator Water Circulator Pump, 1/25 hp, 17 gpm

  • Mfg. Name: Grundfos
  • Brand Name: Grundfos
  • MPN: 59896341
  • PSCN: 5853
  • UPC: 632514100985
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Grundfos UP pumps are small circulators perfect for residential or light commercial use. These traditional circulators provide all the solutions in one package.

  • Quick and easy installation
  • Whisper-quiet operation for sound sensitive installations
  • Built-in timer, line-cord and aquastat corrosion-resistant impeller, composite, PES
  • Unique wet rotor design
  • Aquastat control ensures optimum operation
  • Saves up to 12000 gal per year
  • Removable check valve

Standard/Approvals: C/US UL Listed

Application: For Heating, Cooling And Residential Hot-Water Systems

Brand : Grundfos
Item Name : Circulator Pump
Series/Model : UPS15-58FC
Type : 3-Speed, Small Stator, Water
Connection Type : GF 15/26 Flange
HP Rating : 1/25 hp
Maximum Flow : 0 - 17 gpm
Voltage Rating : 115 V
Material : Cast Iron
Impeller Material : PES Composite (30% Glass-Filled)
Amperage Rating : 0.66 A
Pressure Rating : 145 psi
Temperature Rating : 2 - 110 deg C Liquid
Maximum Head : 19.5 ft
RPM : 2450 Rpm
Phase : 1
Number Of Poles : 2
Dimension : 6-1/2 Inch Height x 5-1/4 Inch Width x 5.093 Inch Depth
Frequency Rating : 60 Hz
Wattage Rating : 80 W
