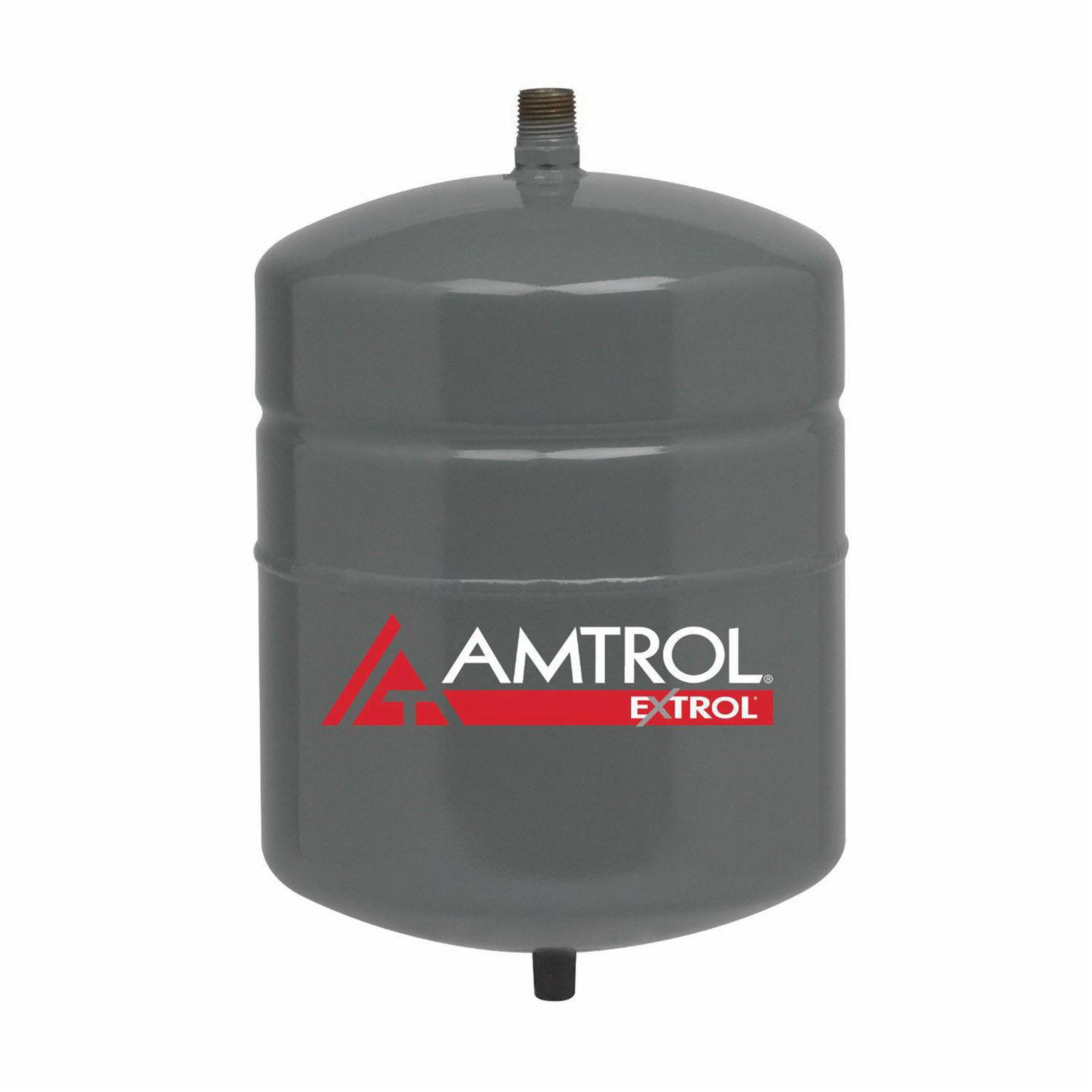

Amtrol EX-15

Amtrol Extrol® EX Series In-Line Model Expansion Tank, 2 gal, 8 Inch Dia x 13 Inch H

  • Mfg. Name: Amtrol
  • Brand Name: Amtrol
  • MPN: EX-15
  • PSCN: 5527
  • UPC: 642031112743
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Amtrol designed and patented the first Extrol diaphragm expansion tank in 1954 to control system pressure and help reduce energy consumption in heating and chilled water systems. Over six decades later, extrol is still the world's leading expansion tank brand, setting the standard for quality, reliability and innovation.

  • Accepts expanded water as system temperature rises to reduce pressure build-up
  • Helps reduce energy consumption and reduces system wear
  • Fill-Trol® models eliminate the need for a separate automatic fill valve, tank pressure controls system fill

Standard/Approvals: ISO Certified

Application: For Use In Closed, Non-Potable, Hydronic Heating Systems

Brand : Amtrol
Sub Brand : Extrol®
Series/Model : EX Series
Item Name : Expansion Tank
Type : In-Line Model
Capacity : 2 gal
Connection Type : NPTM
Connection Size : 1/2 Inch
Diameter : 8 Inch
Height : 13 Inch
Maximum Working Pressure : 100 psi
Material : Steel Shell and System Connection, Projection Welded Air Valve, Heavy-Duty Butyl/EPDM Diaphragm
Finish : Urethane Topcoat
Maximum Temperature : 240 deg F
Precharge Pressure : 12 psi
