Purolator 5267302009

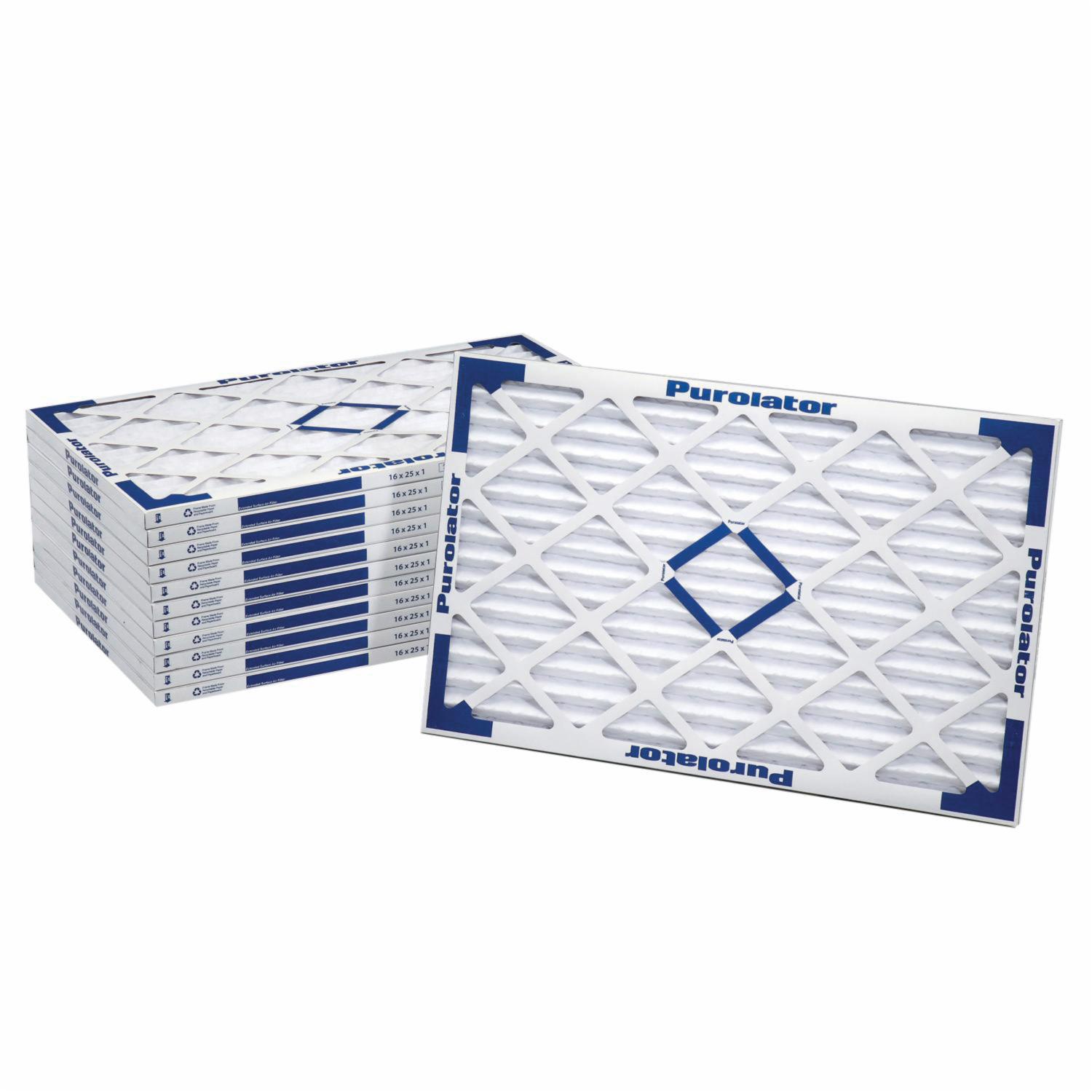

Purolator 16x25x1 Pleated Air Filter (12 per box)

  • Mfg. Name: Purolator
  • Brand Name: Purolator
  • MPN: 5267302009
  • PSCN: 416137
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
Length
  • 16 Inch
  • 20 Inch
Width
  • 1 Inch
My List
Add / Remove CPN
Found: 2 Items Compare Clear List
Your Filters
Clear All
Item Brand MPN # Attributes Price Qty
416137
Purolator 5267302009

Length: 16 Inch

Width: 1 Inch

Add To Cart

Length~16 Inch - 813684

Width~1 Inch - 813684

416138
Purolator 5267302010

Length: 20 Inch

Width: 1 Inch

Add To Cart

Length~20 Inch - 813685

Width~1 Inch - 813685

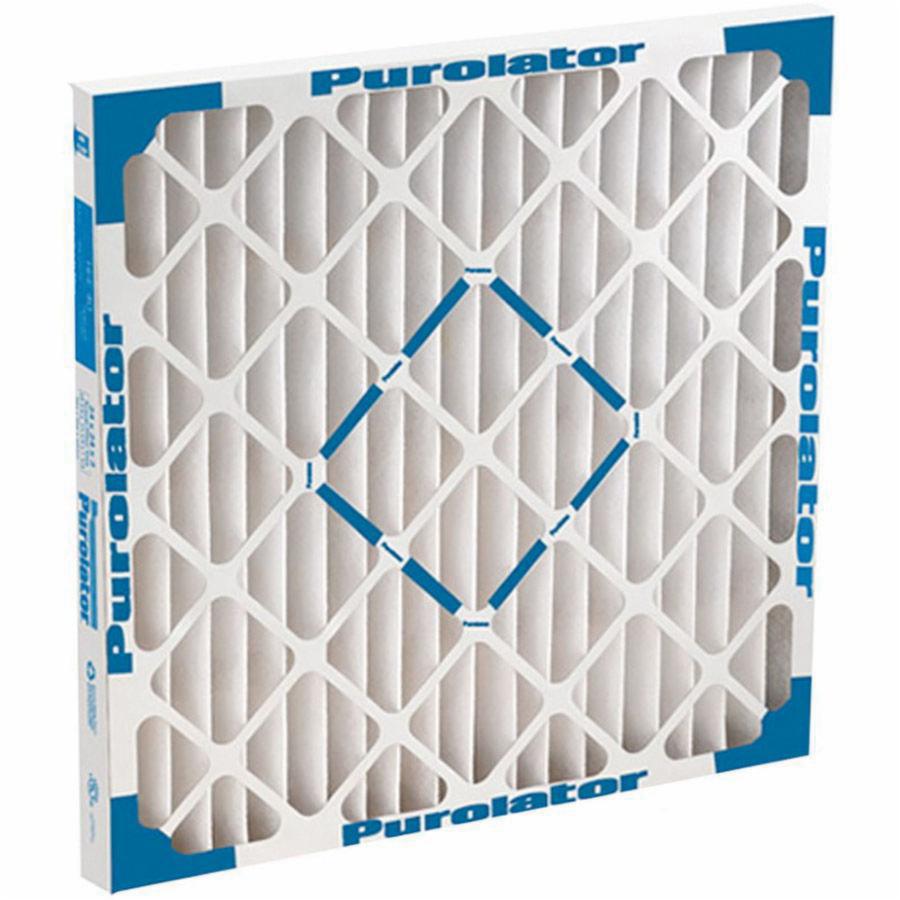

Purolator Hi-E® HE40-STD1 Synthetic Fiber Pleated Air Filter, 850 cfm at 300 fpm, 1400 cfm at 500 fpm, White

The Hi-E 40 is a medium efficiency pleated filter, available in 1, 2 or 4 Inch depths and several standard face sizes to accommodate most system requirements. The 100% hydrophobic synthetic media provides 35 - 40% average efficiency and nearly 95% average arrestance. The Hi-E 40 is effective as a stand-alone filter or prefilter.

  • Mechanical media - Hi-E 40 filters are made with 100% synthetic fibers providing mechanical efficiency to achieve a MERV 8 performance
  • Hi-E 40 filters have a MERV 8 performance before and after a conditioning step
  • The MERV 8 media has a polyvinyl acetate (PVA) adhesive that is not affected by mold or microbial growth
  • Heavy duty beverage board frame - moisture resistant, sturdy frame material stands up to rough handling and difficult service conditions, providing long service life
  • The new die cut pattern increases contact points between the beverage board and die cut by 50%
  • Two-piece frame construction - double-wall thickness around the outer edge and integral die cut cross members provide strength and rigidity
  • Hi-E 40 filters will not rack, warp or bend under normal handling or operating conditions
  • Water repellent adhesive - the adhesive used to bond the frame and media pack into a unitized assembly is highly water repellent
  • The pleats hold together even when wet, no delaminating, no excessive buckling, no collapsing
  • Galvanized steel pleat support - the Hi-E 40 expanded metal pleat support grid is made of galvanized steel for maximum rust resistance
  • The metal grid maintains pleat shape and prevents fluttering in operation
  • Consistent pleat shape minimizes resistance and improves dirt loading characteristics throughout the life of the filter

Standard/Approvals: UL Class 2 per UL Standard 900

Brand : Purolator
Sub Brand : Hi-E®
Item Name : Pleated Air Filter
Series/Model : HE40-STD1
Filter Efficiency : 35 - 40% Average
Flow Rate : 850 cfm at 300 fpm, 1400 cfm at 500 fpm
Media Area : 1.6 sq-ft
Media Material : Synthetic Fiber
MERV Rating : 8
Resistance (W.G.) : 0.27 Inch W.G
Avg Arrestance : 90 - 93%
Average Efficiency : 25 - 30%
Pleats per Foot : 12
Temperature Rating : 225 deg F
Length : 16 Inch
Width : 1 Inch
Height : 25 Inch
