Atco FDIR85

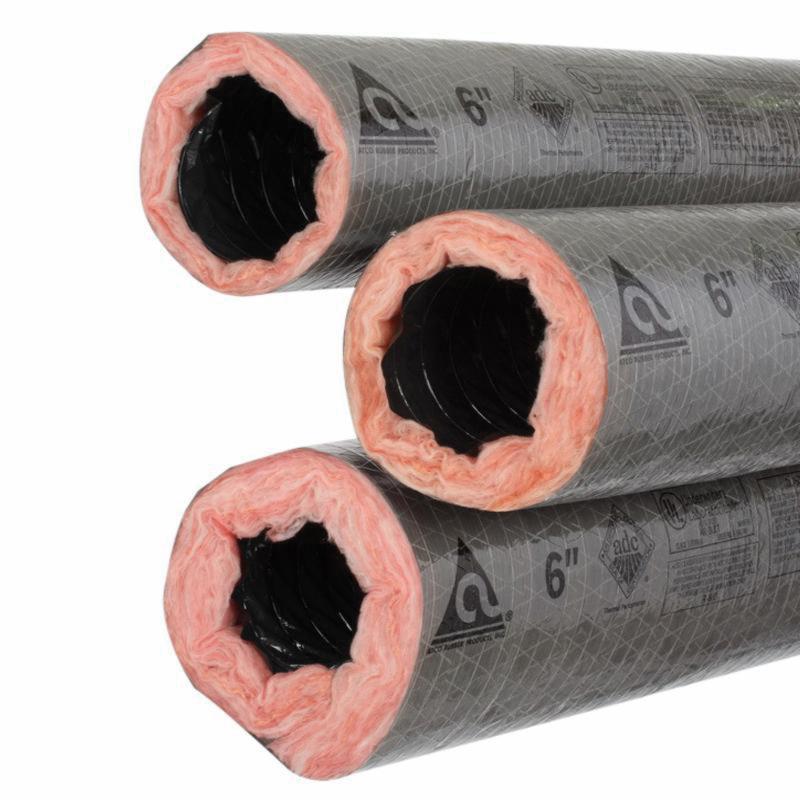

Atco UPC#078 Fiberglass Insulated Flexible Duct, 8.0 R-Value, 25 ft x 5 Inch

  • Mfg. Name: Atco
  • Brand Name: Atco
  • MPN: FDIR85
  • PSCN: 417388
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
Found: 5 Items Compare Clear List
Your Filters
Clear All
Item Brand MPN # Attributes Price Qty
417388
Atco FDIR85
Add To Cart

Nominal_Size~$attributes.attrValue.replace('"',"") - 813880

417389
Atco FDIR89
Add To Cart

Nominal_Size~$attributes.attrValue.replace('"',"") - 813884

374243
Atco FDIR86
Add To Cart

Nominal_Size~$attributes.attrValue.replace('"',"") - 813881

374244
Atco FDIR87
Add To Cart

Nominal_Size~$attributes.attrValue.replace('"',"") - 813882

374245
Atco FDIR88
Add To Cart

Nominal_Size~$attributes.attrValue.replace('"',"") - 813883

Atco #078, class 1 air ducts and are manufactured with a tri-directional fiberglass scrim reinforced, grey polyester outer jacket. The inner core of all three products is air-tight and designed for low-to-medium operating pressures in HVAC systems. Atco #076 and 078 have increased insulation for superior thermal performance.

  • This durable, all purpose product has a double ply, grey polyester vapor barrier with tri-directional reinforcements
  • Air-tight inner core - energy efficient/no fiberglass erosion into air stream
  • Encapsulated wire helix - no unraveling when cut to length/quick installation
  • Smooth inner core - low friction loss/low operating cost
  • Thick blanket of fiberglass insulation - energy efficient/excellent thermal characteristic
  • Tough reinforced grey polyester jacket - tear and puncture resistant/low maintenance

Standard/Approvals: UL 181, NFPA 90A & 90B, IMC, IRC, UMC 10-1 (ICC ES REPORT NO. ESR-1268), HUD 515-2.1 (b)

Application: For Residential And Commercial Low-To-Medium Pressure Heating And Air Conditioning Systems

Brand : Atco
Series/Model : 78 Series
Color/Finish : Gray
Item Name : Flexible Duct
Type : Insulated
Connection Type : Plain End
Length : 25 ft
Diameter : 5 Inch
Material : Double Ply Polyester Core
R-Value : 8.0
Insulation : Fiberglass
Pressure Rating : 6 Inch WG
Temperature Rating : -20 to 140 deg F
