Emerson 24A34-6

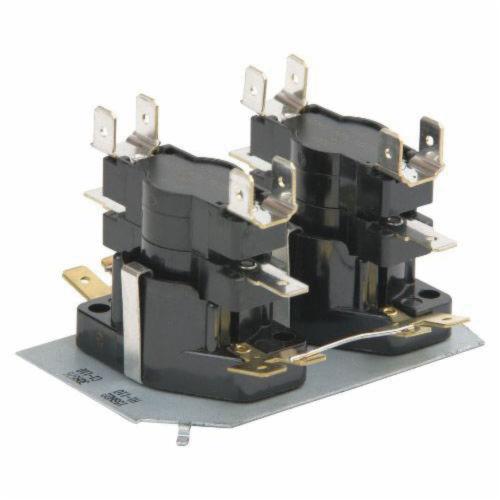

Emerson White-Rodgers™ Model 24A34 Four Switch Electric Heat Sequencer, 1 - 110 sec ON/1 - 110 sec OFF

  • Mfg. Name: Emerson Climate
  • Brand Name: Emerson
  • MPN: 24A34-6
  • PSCN: 9593
  • UPC: 786710004667
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Replaces Honeywell, MARS, TOD, GEMLINE, Klixon (Texas Instruments)
  • Multi-poise mounting
  • Any contacts (except M1 & M2) can be used as auxiliary contacts
  • Double quick-connect terminals for combination loads
  • Terminal Markings are Equivalent to Competitive Types

Standard/Approvals: UL Listed Recognized

Application: For Most Fan/Heat Sequencing Functions

Brand : Emerson
Sub Brand : White-Rodgers™
Item Name : Electric Heat Sequencer
Series/Model : 24A34
Voltage Rating : Input Control: 24 V
Amperage Rating : Resistive: 25 A at 120 V, 25 A at 240 V, 12.5 A at 480 V, Full Load: 14 A at 120 V, 7 A at 240 V, 3 A at 480 V, Locked Rotor: 72 A at 120 V, 42 A at 240 V, 18 A at 480 V
Temperature Rating : Ambient: -50 to 165 deg F
Length : 3-1/4 Inch
Width : 2 Inch
Height : 1-7/8 Inch
Includes : Double Quick-Connect Terminals For Combination Loads
