Sioux Chief 525-162PB

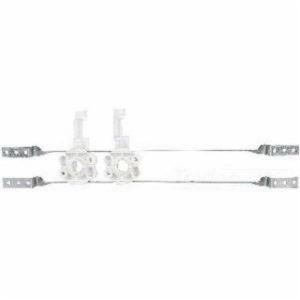

Sioux Chief StrongArm™ 525-PB Series 16 ga Steel Twisted Bracket With (2) 1/2 Inch PEX, 25 lb, Galvanized

  • Mfg. Name: Sioux Chief
  • Brand Name: Sioux Chief
  • MPN: 525-162PB
  • PSCN: 346737
  • UPC: 739236267320
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

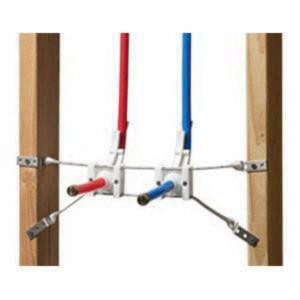

Sioux Chief 525-PB series StrongArm with Plastic Bend Support preassembled bracketing system shall be used where necessary when penetrating a wall with flexible 1/2 Inch CTS stub outs. Brackets shall be Corrosion-resistant and shall be secured to wood or metal studs with approved hardware. System shall include plastic bend (elbow) device that swivels 360 deg when captured within a pair of LockBlocks™. Plastic Bend Support slides across pair of brackets allowing installer to secure flexible 1/2 Inch CTS stub out at any desired location within the stud cavity.

  • Use when stubbing out with 1/2 Inch flexible CTS tube
  • Strong Arm™ brackets provide a very rigid installation
  • Plastic elbow swivels 360 deg to work with tubing coming from any direction
  • PEX Bend Lock Blocks™ are pre-assembled on each pair of brackets
  • Position stub outs at any desired location within the stud bay
  • Twisted brackets mount to face of stud, and L-bent brackets mount inside stud cavity
  • When screws on blocks are tightened, blocks compress on tube, brackets and elbow eliminating all movement
Brand : Sioux Chief
Sub Brand : StrongArm™
Series/Model : 525-PB Series
Item Name : Twisted Bracket
Maximum Load Capacity : 25 lb at 140 deg F
Material : 16 ga Steel
Finish : Galvanized
Maximum Temperature : 140 deg F
Width : 2.2712 Inch
Height : 2.1472 Inch Block
Includes : (2) Plastic Bend Lock Blocks
For Use With : 16 Inch Stud Bays
