NDS DS-093

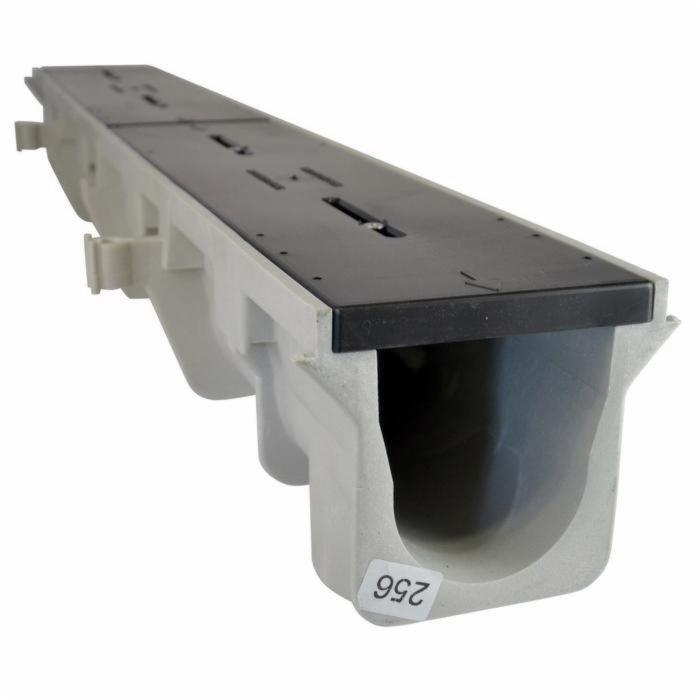

NDS Dura Slope™ DS-093 Polyethylene Channel Drain, 103 gpm, Gray

  • Mfg. Name: NDS
  • Brand Name: NDS
  • MPN: DS-093
  • PSCN: 16320
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

NDS Dura Slope is a 6-5/8 Inch wide, 48 Inch long trench drain system with a built-in slope of 0.7%. "N" sections are non-sloped and used to extend the length of the system. Each channel section is molded of gray structural foam polyethylene with UV inhibitors 4 Inch inside diameter with a 2 Inch radius bottom. LeveLoc re-bar supports with integral protruding knob levels channel and grips re-bar. ProFit locking system locks grate to integral frame and supports product during installation DuraLoc integral joint lock prevents joint movement during installation, no extra clamps or screws needed. Interlocking tongue and groove joints and bottom outlet on each channel section 0.7% built-in slope.

Brand : NDS
Sub Brand : Dura Slope™
Item Name : Channel Drain
Finish : Gray
Flow Rate : 103 gpm
Material : Polyethylene
Length : 48 Inch
Width : 10.185 Inch
