Fernco NH-22

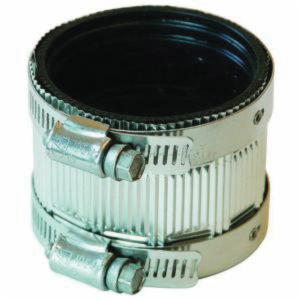

Fernco NH-22 304 Stainless Steel Standard-Duty No-Hub Coupling, 2 Inch Slip x 2 Inch Slip

  • Mfg. Name: Fernco
  • Brand Name: Fernco
  • MPN: NH-22
  • PSCN: 19979
  • UPC: 018578016460
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The no-hub coupling has a patented shield design that provides maximum transfer of pressure from the clamps to the gasket and pipe. Engineered to connect no-hub cast iron pipe in applications, replacing the less-efficient hub and spigot.

  • 5/16 Inch hex-head screw applies 60 Inch-lb of installation torque to the band/shield assembly
  • Patented bi-directional shield design
  • Specially beaded gasket
  • Interlocking clamp design: This design eliminates leak paths that can occur in staked or welded clamps
  • Floating eyelet design: Fastening the clamps to the shield, the floating eyelets allow the clamp, band and shield to move independently
  • 2 clamps per coupling

Standard/Approvals: Conform To CISPI 310, ASTM C 1277

Application: For Hubless Cast Iron Systems, Sewer And Drain Waste

Brand : Fernco
Item Name : No-Hub Coupling
Type : Standard-Duty
Nominal Size : 2 x 2 Inch
Connection Type : Slip x Slip
Material : 304 Stainless Steel Shield, Clamp and Housing
Length : 3-1/2 Inch
Pressure Rating : 4.3 psi
Temperature Rating : 140 deg F Non-Consistent
Weight : 0.263 lb
Installation Torque : 60 Inch-lb
