Spears 429-007

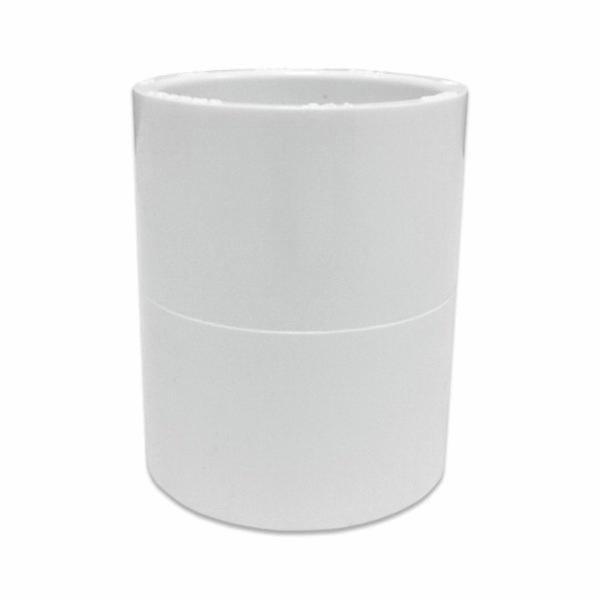

Spears 429 Series White PVC SCH 40 Standard Coupling, 3/4 Inch Socket x 3/4 Inch Socket

  • Mfg. Name: Spears Manufacturing
  • Brand Name: Spears
  • MPN: 429-007
  • PSCN: 4748
  • UPC: 054211137505
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Spears® SCH 40 PVC fitting designs combine years of proven experience with computer generated stress analysis to yield the optimum physical structure and performance for each fitting. Material reinforcement is uniformly placed in stress concentration areas for substantially improved pressure handling capability. Resulting products are subjected to numerous verifycation tests to assure the very best PVC fittings available.

  • Exceptional chemical and corrosion resistance - unlike metal, PVC fittings never rust, scale, or pit, and will provide many years of maintenance-free service and extended system life
  • PVC thermoplastic can handle fluids at service temperatures up to 140 deg F, allowing a wide range of process applications, including corrosive fluids
  • Lower installation costs
  • Higher flow capacity - smooth interior walls result in lower pressure loss and higher volume than conventional metal fittings

Standard/Approvals: NSF/ANSI 61 And 14 Annex G, ASTM D1785, ISO 9001 Certified

Application: For Portable Water Applications

Brand : Spears
Series/Model : 429 Series
Item Name : Coupling
Type : Standard
Nominal Size : 3/4 x 3/4 Inch
Connection Type : Socket x Socket
Material : PVC
Color : White
Schedule : SCH 40
Length : 2-3/32 Inch
Diameter : 1-5/16 Inch
Temperature Rating : 140 deg F
Method Of Manufacturer : Molded
Weight : 0.05 lb
