Watts 0066125

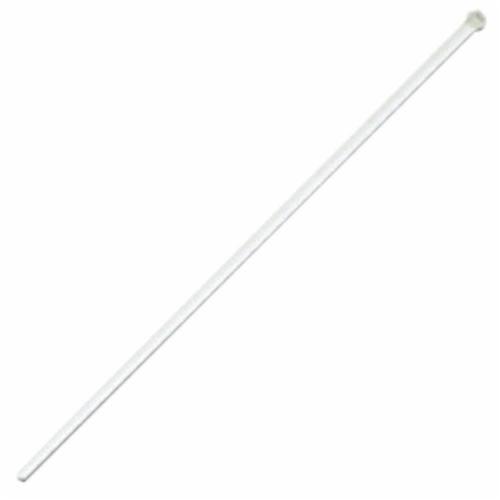

Watts 0066125 100DT Series Drain Tube, 3/4 Inch, 15 psi

  • Mfg. Name: Watts
  • Brand Name: Watts
  • MPN: 0066125
  • PSCN: 17328
  • UPC: 098268007329
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

series 100DT drain tubes for T&P Relief Valves are used on gas, electric, or oil fired residential water heaters to safely drain water discharged from the heater's temperature and pressure relief valve. It connects to the drain connection on a side-mounted relief valve that has up to 105,000 BTU/hr. rating, and has a drop length of 48 Inch or 72 Inch. series 100DT hand tightens to relief valve outlet, requiring no special tools or fittings.

  • No special tools required for installation, simply hand tighten

Standard/Approvals: UPC And IAPMO Listed, ASME A112.4.1 Approved, Meets Department Of Housing And Urban Development Requirements

Application: For Side-Mounted T And P Relief Valves Used On Gas, Electric Or Oil Fired Residential Water Heaters

Brand : Watts
Item Name : Drain Tube
Series/Model : 100DT Series
Connection Size : 3/4 Inch
Temperature Rating : 250 deg F
Pressure Rating : 15 psi Maximum Working
