Watts 0066100

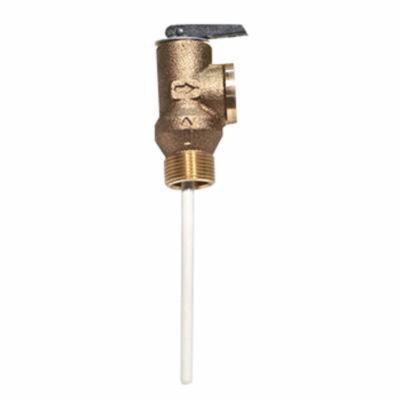

Watts 0066100 Brass 105000 BTU/hr Self-Closing Temperature and Pressure Relief Valve For Water Heater, 3/4 Inch Male x 3/4 Inch Female, 75 - 150 psi

  • Mfg. Name: Watts
  • Brand Name: Watts
  • MPN: 0066100
  • PSCN: 18368
  • UPC: 098268000016
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

series 100XL temperature and pressure relief valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 BTU/hr. They feature a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever.

Standard/Approvals: ASME, CSA Certified

Application: For Use In Water Heater And Hot Water Storage Tank

Brand : Watts
Item Name : Temperature and Pressure Relief Valve
Series/Model : 100XL Series
Type : Self-Closing
Connection Size : 3/4 Inch
Connection Type : Male Threaded (IPS) Inlet x Female Threaded (IPS) Outlet
Capacity : 105000 BTU/hr
Temperature Rating : 210 deg F
Width : 1-3/4 Inch
Height : 7-1/2 Inch
Material : Brass Body, Stainless Steel Spring
Pressure Rating : 75 - 150 psi Pressure Relief Range, 150 psi Setting
