BrassCraft G2CEPX19X-C

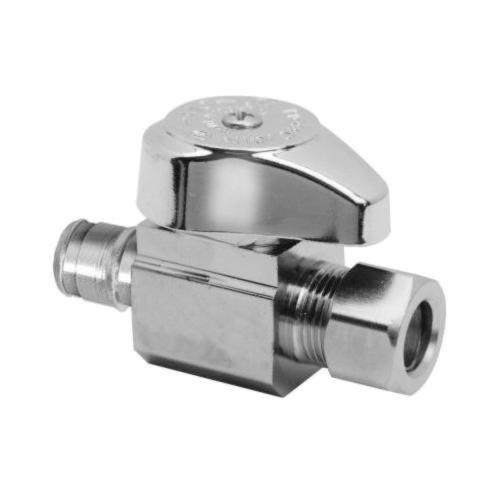

BrassCraft G2CEPX19X-C Lead-Free Brass 1/4 Turn Angle Stop, 1/2 Inch Cold Expansion Barb x 3/8 Inch Compression, Chrome-Plated

  • Mfg. Name: BrassCraft
  • Brand Name: BrassCraft
  • MPN: G2CEPX19X-C
  • PSCN: 387129
  • UPC: 02661314158
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Not intended for recirculating systems that produce continuous use temperatures above 115 deg F
  • One-piece shut-off mechanism provides smooth on-off operation without freeze-ups even after long periods of non-use
  • Positive 1/4 turn shut-off
  • Full-flow operation with no waterway obstructions
  • Corrosion-resistant handle is plated in an attractive chrome finish
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Easy-to-remove handle with screw attachment protects accidental operation during rough-ins
  • 100% leak tested
  • Cast-plated zinc die cast handle, brass sleeve and nut, zinc-plated steel screw

Standard/Approvals: IAPMO Listed To ASME A112.18.1/CSA B125.1 (File Number 0645), CSA Listed To ASME A112.18.1/CSA B125.1 (File Number 204593), No-Lead CSA Listed To NSF 372 (Class 6853-01)

Application: For Use With ASTM F876 PEX Tubing, In ASTM F877 Water Distribution Systems

Brand : BrassCraft
Item Name : Angle Stop
Nominal Size : 1/2 x 3/8 Inch
Connection Type : Cold Expansion Barb x Compression
Turn : 1/4
Material : Lead-Free Brass
Finish : Chrome-Plated
Handle Type : Knob
Pressure Rating : 125 psi
Temperature Rating : 40 to 140 deg F
Dimensions : 2.13 Inch Length x 1.49 Inch Height
