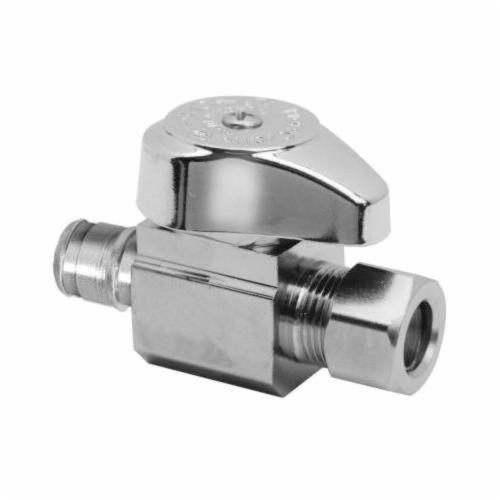

BrassCraft G2CEPX14X-C Lead-Free Brass 1/4 Turn Straight Stop, 1/2 Inch Cold Expansion Barb x 3/8 Inch Compression, Chrome-Plated

Retail Price:

Qty

Add / Remove CPN

Not intended for recirculating systems that produce continuous use temperatures above 115 deg F
One-piece shut-off mechanism provides smooth on-off operation without freeze-ups even after long periods of non-use
Positive 1/4 turn shut-off
Full-flow operation with no waterway obstructions
Corrosion-resistant handle is plated in an attractive chrome finish
Machined one-piece brass body provides strength, durability and long-lasting performance
Easy-to-remove handle with screw attachment protects accidental operation during rough-ins
100% leak tested
Rubber o-ring, chrome-plated zinc die-cast handle, brass sleeve and nut, zinc-plated steel screw

Standard/Approvals: IAPMO Listed To ASME A112.18.1/CSA B125.1 (File Number 0645), CSA Listed To ASME A112.18.1/CSA B125.1 (File Number 204593)

Application: For Use With ASTM F876 PEX Tubing, In ASTM F877 Water Distribution Systems

Brand	:	BrassCraft
Item Name	:	Straight Stop
Nominal Size	:	1/2 x 3/8 Inch
Connection Type	:	Cold Expansion Barb x Compression
Turn	:	1/4
Material	:	Lead-Free Brass
Finish	:	Chrome-Plated
Handle Type	:	Knob
Pressure Rating	:	125 psi
Temperature Rating	:	40 to 140 deg F
Dimensions	:	2.19 Inch Length x 1.44 Inch Height
