Anvil 0560317208

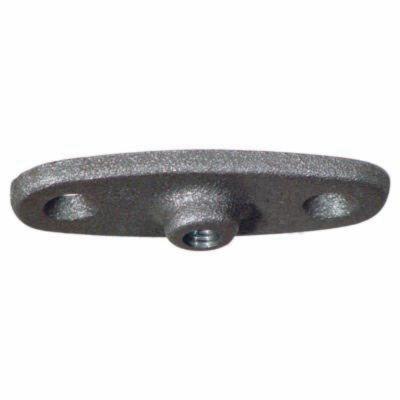

Anvil 128R Malleable Iron PHD #941 Rod Threaded Ceiling Flange, 3/8 Inch, Electro-Galvanized

  • Mfg. Name: Anvil International
  • Brand Name: Anvil
  • MPN: 0560317208
  • PSCN: 23770
  • UPC: 690291144660
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • For attachment to wood beams or ceiling

Standard/Approvals: Meets ASME B16.13 For Dimension, ASTM A-197 For Material, ASME B1. 20.1 for Thread, ASME B16.3 for Pressure, UL Listed, FM Approved, IAPMO Certified

Brand : Anvil
Item Name : Ceiling Flange
Series/Model : 128R
Type : Rod Threaded, PHD #941
Connection Type : FNPT
Set Screw Size : #12
Material : Malleable Iron
Color/Finish : Electro-Galvanized
Schedule : SCH 40
Center To Center End Hole : 2-1/4 Inch
Pressure Class : 150 lb
Pressure Rating : 300 psi
Temperature Rating : -20 to 150 deg F
Maximum Load : 180 lb
Dimensions : 3-5/16 Inch Length x 1-3/8 Inch Width x 1/2 Inch Height
Weight : 0.16 lb
