Woodford 17CP-12MH

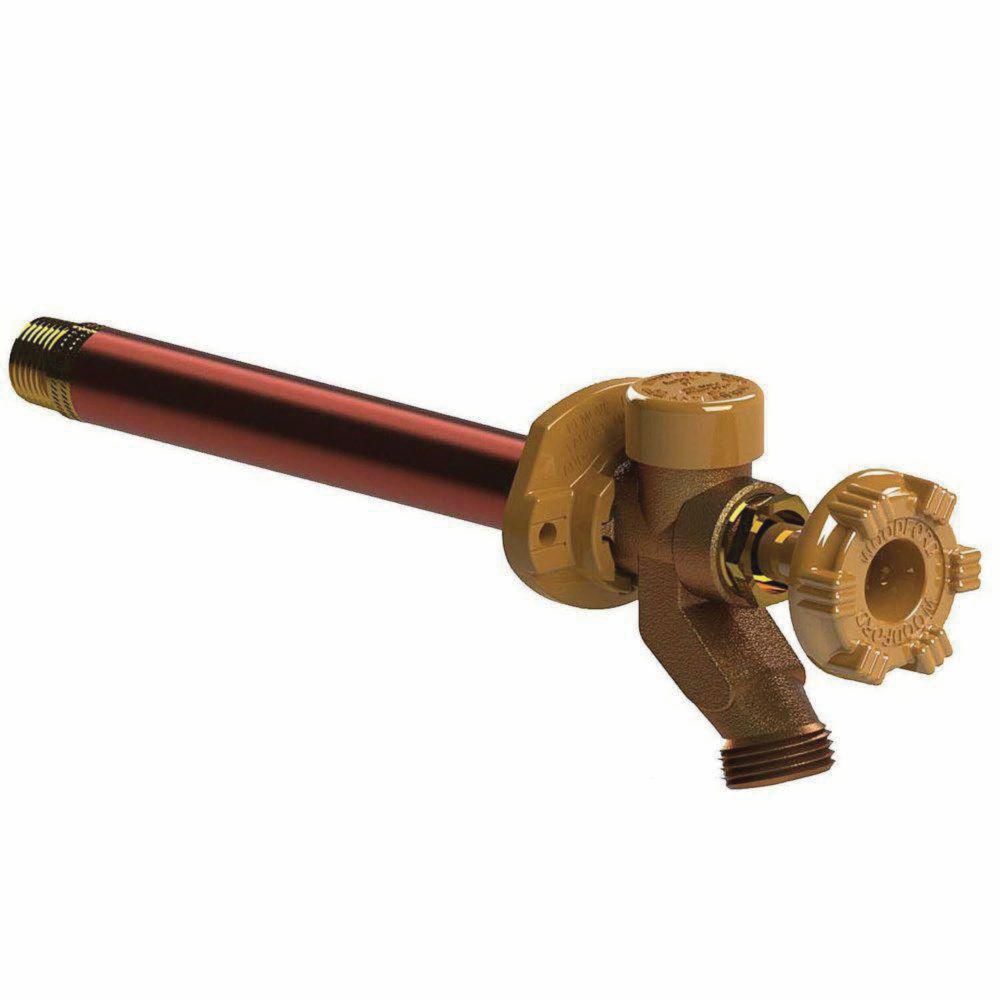

Woodford 17 Series Brass Wheel Handle Freezeless Anti-Siphon Wall Faucet, 1/2 MPT x 1/2 Inch Female Sweat, 12 Inch L

  • Mfg. Name: Woodford
  • Brand Name: Woodford
  • MPN: 17CP-12MH
  • PSCN: 12660
  • UPC: 671090014118
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The freezeless model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require and add-on vacuum breaker.

  • Stainless steel seat - eliminates wire draw
  • EPDM packing to prevent leaking
  • Full circle operating threads on valve body and retainer
  • No-lead solder
  • Standard "O" size seat washer
  • Powder-coated, die-cast aluminum handle
  • Adjustable polycarbonate wall flange

Standard/Approvals: CSA And C/UPC Certified, ASSE Standards

Brand : Woodford
Item Name : Wall Faucet
Series/Model : 17
Type : Freezeless, Anti-Siphon
Inlet Size : 1/2 Inch
Outlet Size : 1/2 Inch
Connection Type : Male Pipe Thread x Female Sweat
Wall Thickness : 12 Inch
Material : Brass
Handle Material : Die-Cast Aluminum
Handle Type : Wheel
Pressure Rating : 125 psi
Temperature Rating : 120 deg F
Length : 12-1/2 Inch
