Hammond Valve 8901-1

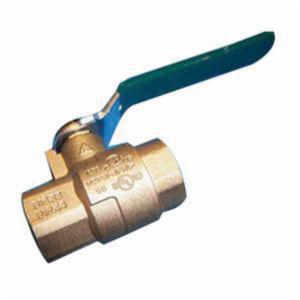

Hammond Valve 8901 Series Lever Handle 2-Piece Full Port Ball Valve, 1 Inch FNPT, 600 psi WOG

  • Mfg. Name: Hammond Valve
  • Brand Name: Hammond Valve
  • MPN: 8901-1
  • PSCN: 12784
  • UPC: 084738112945
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • Blow-out proof stem design
  • Forged brass tailpiece and buna o-ring
  • PTFE trust and washer, brass gland nut
  • Zinc plated steel handle and nut

Standard/Approvals: ASME Standard A 112.4.14, C/US CSA ANSI Z 21.15 Z CGA 9.1 ASME 16.44, C/US UL 125, 842

Brand : Hammond Valve
Item Name : Ball Valve
Series/Model : 8901
Type : 2-Piece, Full Port
Nominal Size : 1 Inch
Connection Type : FNPT
Media : Water
Number Of Ports/Ways : 2
Pressure Rating : 600 psi WOG, 150 psi SWP
Body Material : Forged Brass
Ball Material : Copper Plated Brass
Seat : RPTFE
Seal : PTFE
Stem : Brass
Packing : PTFE
Actuation/Operator : Lever Handle
Flow Co-Efficient (Cv) : 72
Dimensions : 3.06 Inch Length
Weight : 1.24 lb
