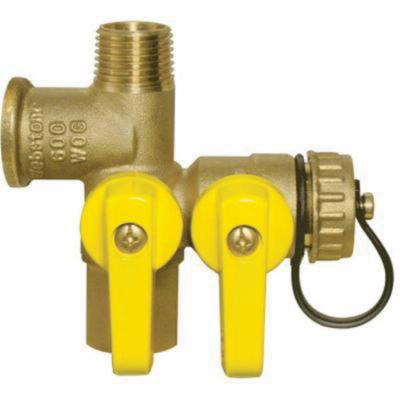

Webstone Valve 41672

Webstone Valve Pro-Pal Series Lever Handle Full Port Ball Valve, 1/2 Inch FIP x 1/2 Inch MIP x 1/2 Inch FIP, 600 psi WOG

  • Mfg. Name: Webstone Valve
  • Brand Name: Webstone Valve
  • MPN: 41672
  • PSCN: 385999
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • This approved Webstone valve is actuated by a blowout proof stem
  • Features an adjustable packing nut
  • This valve's MIP end also features an internal solder connection if the use of solder is preferred
  • Brass end cap, packing gland, EPDM washer and strap
  • Enamel coated aluminum handle, brass handle screw

Standard/Approvals: Complies With ASME B16.18, ANSI B1.20.1

Application: For Residential, Commercial Or Industrial Use With Water, Oil Or Gas

Brand : Webstone Valve
Item Name : Ball Valve
Series/Model : Pro-Pal Series
Type : Full Port
Nominal Size : 1/2 x 1/2 x 1/2 x 1/2 Inch
Connection Type : FIP x MIP x FIP x Hose
Media : Water/Oil/Gas
Number Of Ports/Ways : 4
Pressure Rating : 600 psi WOG
Temperature Rating : 100 to 350 deg F
Body Material : Forged Brass
Ball Material : HCP Brass
Seat : PTFE
Seal : PTFE
Stem : Brass
Actuation/Operator : Lever Handle
Dimensions : 3-1/2 Inch Length x 3-3/8 Inch Height
