Hammond Valve UP8911-3/4

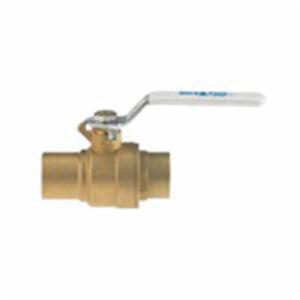

Hammond Valve Ultra Pure™ UP8911 Series Lever Handle 2-Piece Full Port Ball Valve, 3/4 Inch Soldered (Sweat), 600 psi WOG

  • Mfg. Name: Hammond Valve
  • Brand Name: Hammond Valve
  • MPN: UP8911-3/4
  • PSCN: 409298
  • UPC: 697988612761
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • For fast on/off service, bubble-tight shut-off and some throttling control
  • Adjustable stem packing and blowout-proof stems
  • Brass forged and brass (B283 C69300) tailpiece, buna-N (6002D) o-ring, PTFE (commercial) thrust washer, brass (B16) gland nut
  • Zinc plated steel handle and nut

Standard/Approvals: Designed In Accordance With The Requirements Of California AB 1953, Vermont S 152 And Senate Bill S3874

Application: For Portable Water System

Brand : Hammond Valve
Sub Brand : Ultra Pure™
Item Name : Ball Valve
Series/Model : UP8911
Type : 2-Piece, Full Port
Nominal Size : 3/4 Inch
Connection Type : Soldered (Sweat)
Media : Water
Number Of Ports/Ways : 2
Pressure Rating : 600 psi WOG
Temperature Rating : 150 deg C
Body Material : Forged Brass
Ball Material : Brass with Chrome
Seat : RPTFE
Seal : PTFE
Stem : Brass
Trim : Stainless Steel
Packing : PTFE
Actuation/Operator : Insulated Lever Handle
Flow Co-Efficient (Cv) : 40
Dimensions : 3.1 Inch Length
Weight : 0.82 lb
