Honeywell V110F1018

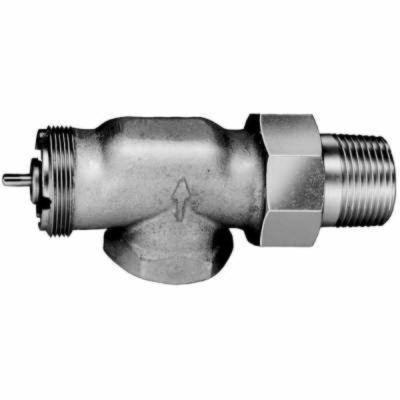

Honeywell V110F Bronze High Capacity Thermostatic Radiator Valve, 1 Inch Threaded

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: V110F1018
  • PSCN: 2713
  • UPC: 85267103299
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

High capacity thermostatic radiator valves with T104 actuators provide control of temperature by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.

  • Designed with the higher capacity normally required by North American heating systems
  • Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems
  • Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
  • All working parts are replaceable using service tool (MT110C1011) while valve remains in service, in-line, under pressure
  • Valves normally open without control mounted
  • Valves may be used with T104 thermostatic actuators

Standard/Approvals: Meet ASHRAE Standard 102-1989

Application: For Use to Precise And Automatic Control Of Room Temperature In Two-pipe Systems By Modulating The Flow Of Hot Water Or Steam Through High Capacity Heating Units When Used With T104 Thermostatic Actuators

Brand : Honeywell
Item Name : Thermostatic Radiator Valve
Series/Model : V110F
Type : High Capacity
Temperature Range : 248 deg F Maximum
Pipe Size : 1 Inch
Connection Type : Threaded
Body Style : Horizontal Angle
Capacity : 193000 BTU/hr
Coefficient Of Volume (Cv) : 7
Material : Bronze Body
Pressure Rating : 150 psi Maximum Hot Water, 15 psi Maximum Steam, 17 psi Maximum Differential
Fits : T104 Actuator
