Honeywell V110D1008

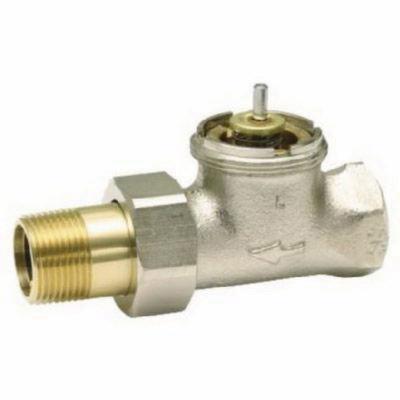

Honeywell Braukmann V110 Bronze High Capacity Horizontal Straight Thermostatic Radiator Valve, 3/4 Inch Threaded, Nickel Plated

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: V110D1008
  • PSCN: 23830
  • UPC: 85267103152
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

High Capacity Thermostatic Radiator Valves with T104 Actuators provide control of temperature by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.

  • Designed with the higher capacity normally required by North American heating systems
  • Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems
  • Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
  • All working parts are replaceable using service tool (MT110C1011) while valve remains in service, in-line, under pressure
  • Valves normally open without control mounted
  • Valves may be used with T104 thermostatic actuators

Standard/Approvals: Meet ASHRAE Standard 102-1989

Application: For T104 Hot Water Or Steam Through Free-Standing Radiators

Brand : Honeywell
Sub Brand : Braukmann
Item Name : Thermostatic Radiator Valve
Series/Model : V110
Type : High Capacity, Horizontal
Temperature Range : 248 deg F
Pipe Size : 3/4 Inch
Connection Type : Threaded
Body Style : Straight
Capacity : 162000 BTU/hr
Coefficient Of Volume (Cv) : 5.8
Material : Bronze
Finish : Nickel Plated
Pressure Rating : 150 psi Water, 15 psi Steam
