Honeywell V110D1000

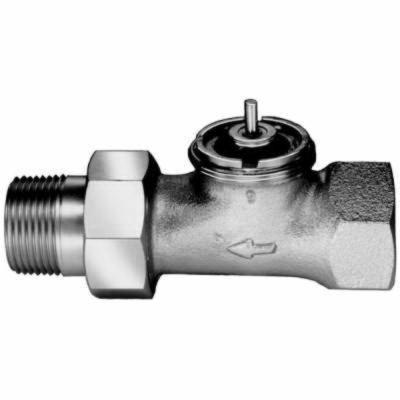

Honeywell V110D Bronze High Capacity Thermostatic Radiator Valve, 1/2 Inch Threaded, Nickel Plated
- Mfg. Name: Honeywell
- Brand Name: Honeywell
- MPN: V110D1000
- PSCN: 23745
- UPC: 85267103145
- Min. Ord. Qty: 1
- Qty. Interval: 1
Retail Price:
Qty
High capacity thermostatic radiator valves with T104 actuators provide control of temperature by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.
- Designed with the higher capacity normally required by North American heating systems
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems
- Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
- All working parts are replaceable using service tool (MT110C1011) while valve remains in service, in-line, under pressure
- Valves normally open without control mounted
- Valves may be used with T104 thermostatic actuators
Standard/Approvals: Meet ASHRAE Standard 102-1989
Application: For Use to Precise And Automatic Control Of Room Temperature In Two-pipe Systems By Modulating The Flow Of Hot Water Or Steam Through High Capacity Heating Units
| Brand | : | Honeywell |
| Item Name | : | Thermostatic Radiator Valve |
| Series/Model | : | V110D |
| Type | : | High Capacity |
| Temperature Range | : | 248 deg F Maximum |
| Pipe Size | : | 1/2 Inch |
| Connection Type | : | Threaded |
| Body Style | : | Straight |
| Capacity | : | 127000 BTU/hr |
| Coefficient Of Volume (Cv) | : | 4.6 |
| Material | : | Bronze Body |
| Finish | : | Nickel Plated |
| Pressure Rating | : | 150 psi Maximum Hot Water, 15 psi Maximum Steam, 17 psi Maximum Differential |
| Fits | : | T104 Actuator |
