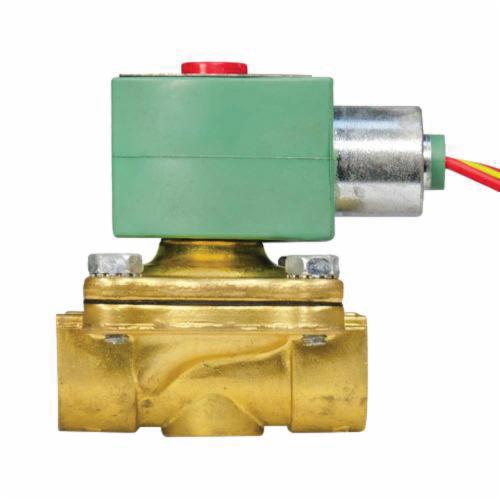

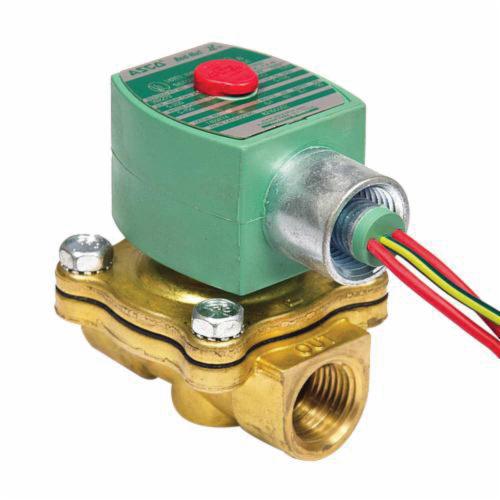

Asco RedHat 2/2 Series Brass Normally Closed Solenoid Valve, 1/2 Inch, 120/110 VAC

Retail Price:

Qty

Add / Remove CPN

Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage
High Flow Valves for liquid, corrosive, and air/inert gas service
Industrial applications include car wash, laundry equipment, air compressors, industrial water control, pumps

Standard/Approvals: UL Listed, CSA Certified, CE directives

Application: For Industrial Applications Include Car Wash, Laundry Equipment, Air Compressors, Industrial Water Control, Pumps

Brand	:	Asco
Sub Brand	:	RedHat
Item Name	:	Solenoid Valve
Series/Model	:	2/2 Series
Nominal Size	:	1/2 Inch
Pressure Rating	:	5 - 125 psi Differential
Voltage Rating	:	120/110 VAC
Coil Type	:	F Class
Number Of Ports/Ways	:	2-Way/2-Position
Orifice/Opening Size	:	5/8 Inch
Wattage Rating	:	6.1 W (AC) / 11.6 W (DC)
Contact Configuration	:	Normally Closed
Enclosure	:	Watertight, NEMA 1, 2, 3, 3S, 4, 4X
Construction	:	Brass Body, EPDM Seal, 302 Stainless Steel Spring, 305 Stainless Steel Core Tube
Temperature Rating	:	210 deg F (AC) / 150 deg F (DC)
Dimensions	:	2-3/4 Inch Length x 2-9/32 Inch Width x 3-3/8 Inch Height

Please Click Here to contact a knowledgeable PSC representative who will promptly reply to your request.
