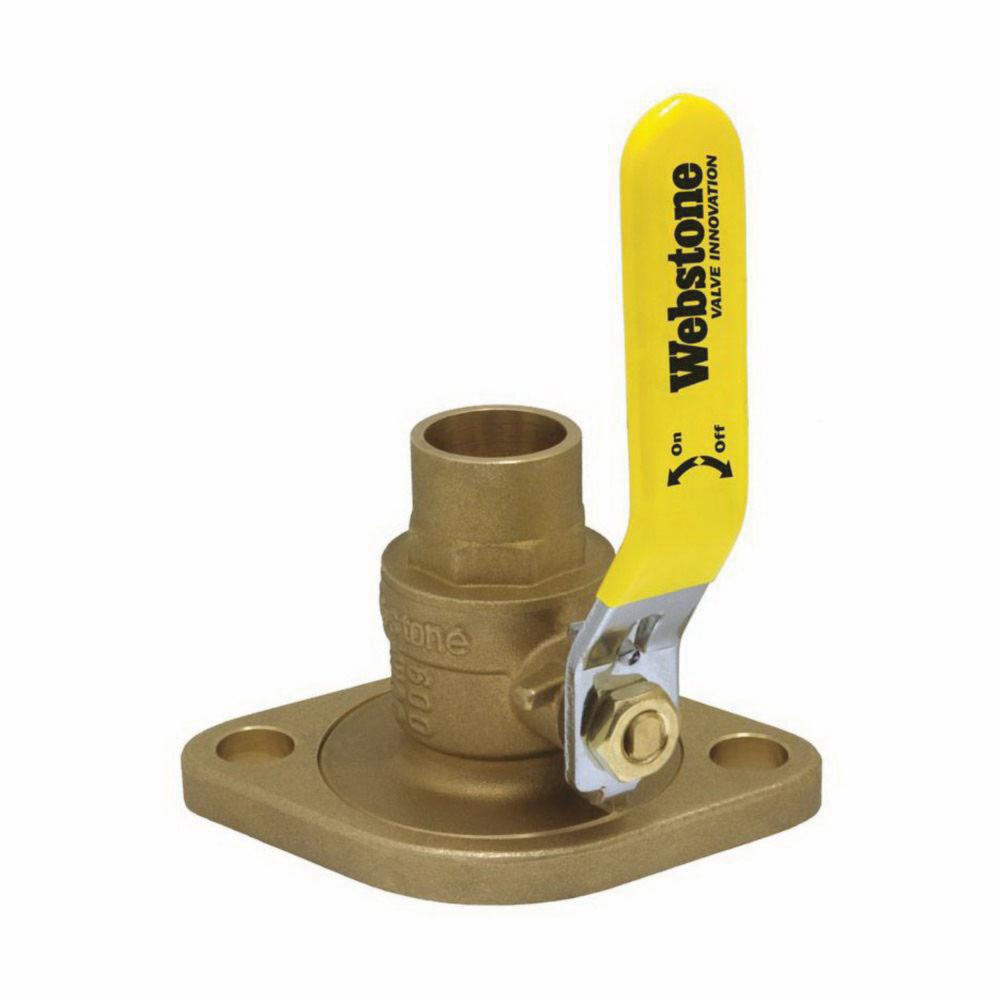

Webstone Valve 51403

Webstone Valve The Isolator® 5140 Series Full Port Ball Valve, 3/4 Inch Sweat x 3/4 Inch Rotating Flange, 600 psi WOG

  • Mfg. Name: Webstone Valve
  • Brand Name: Webstone Valve
  • MPN: 51403
  • PSCN: 2959
  • UPC: 018394514034
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN
  • With detachable rotating flange and adjustable packing gland bonus wing style "T" handle, nuts and bolts
  • Actuated by a blowout proof stem and features an adjustable packing gland
  • Flange features a conical inlet to minimize turbulence
  • The rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation

Standard/Approvals: ISO 9001 Certified

Brand : Webstone Valve
Sub Brand : The Isolator®
Item Name : Ball Valve
Series/Model : 5140 Series
Type : Full Port
Nominal Size : 3/4 x 3/4 Inch
Connection Type : Sweat x Rotating Flange
Media : Water/Glycol Mixture
Number Of Ports/Ways : 3-Way
Pressure Rating : 600 psi WOG
Temperature Rating : 100 - 366 deg F
Body Material : Forged Brass
Ball Material : HCP Brass
Seat : PTFE
Seal : PTFE
Stem : Brass
Packing : Brass Gland
Actuation/Operator : T Handle
Dimensions : 4-1/8 Inch Length
