Prier C-534-F12

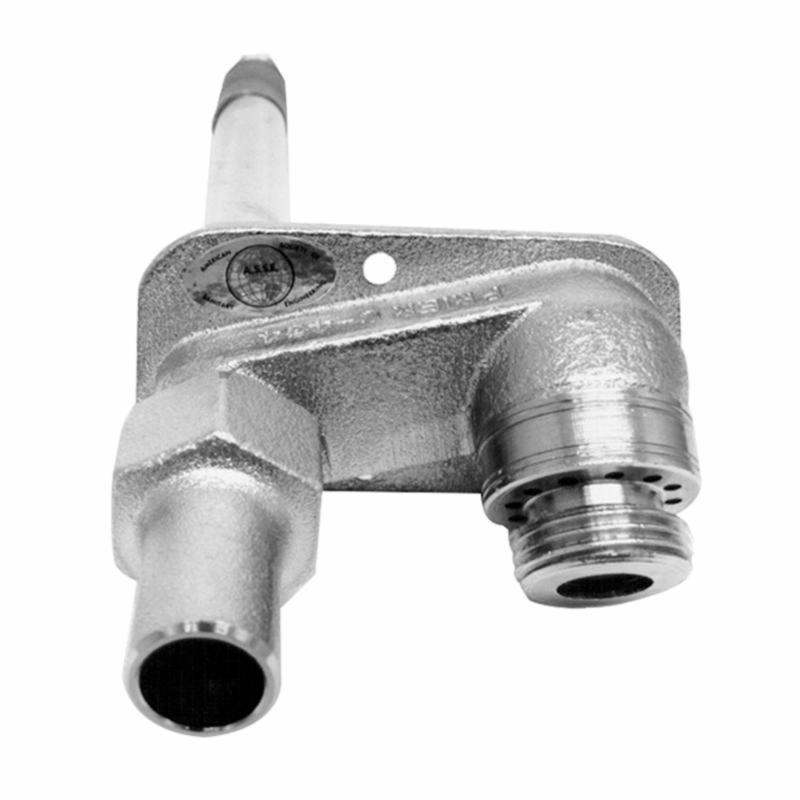

Prier C-534 Series Cast Brass Commercial Wall Hydrant, 3/4 Inch MPT x 3/4 Inch Female Sweat, Satin Nickel-Plated, 12 Inch Insertion Length

  • Mfg. Name: Prier Products
  • Brand Name: Prier
  • MPN: C-534-F12
  • PSCN: 401561
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

The Prier C-534 provides a year round source of water to areas of structures that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. To assure freeze protection, the hydrant will drain even with the hose attached and under pressure without sprayback.

  • Drains automaticallywith hoseattached and underpressure to preventpipesfromfreezingand bursting without sprayback
  • Downward pitch is Built-into hydrant, ensuring proper installation
  • All drainage features are accomplished outside the wall eliminating brick and wall cutting
  • Solid brass stem ends use large diameter long wearing acme threads
  • Stem packing and handle assembly are identical to Prier's C-134 Design
  • Metal collar covers drainage holes and protects userfrom sprayback while closing under pressure
  • Multiple vent holes ensure proper draining
  • Cycle tested to simulate 25-years minimum service
  • Loose key operated with vandal proof lock shield

Standard/Approvals: ASSE, C-UPC Certified

Application: For Commercial Purpose, Provides A Year Round Source Of Tempered Water To Areas Of Structures That Are Subject To Freezing Temperatures

Brand : Prier
Item Name : Commercial Wall Hydrant
Series/Model : C-534 Series
Connection Type : 3/4 Inch MPT x 3/4 Inch Female Sweat
Material : Cast Brass
Length : 12 Inch Insertion
Width : 3-3/4 Inch
Height : 2-1/32 Inch
Includes : P-004 Vacuum Breaker and Dual Backflow Preventer, (2) Backflow Check Valves
Operator Type : Key
