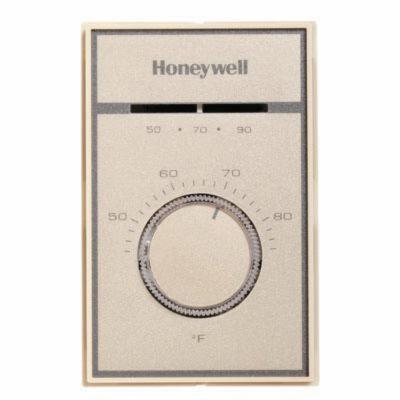

Honeywell T651A-3018

Honeywell Super Tradeline® T651A 1-Stage Heat/1-Stage Cool Non-Programmable Medium-Duty Heat/Cool Line Voltage Thermostat With Thermometer Locking Cover and Range Stop, 120/208/240/277 VAC, 44 - 86 deg F

  • Mfg. Name: Honeywell
  • Brand Name: Honeywell
  • MPN: T651A-3018
  • PSCN: 6994
  • UPC: 85267824347
  • Min. Ord. Qty: 1
  • Qty. Interval: 1
Retail Price:
Qty
My List
Add / Remove CPN

Light and medium duty line voltage thermostats control line voltage valves, motors, contractors, electric heat, elements, duct furnaces, and fan coil units in heating/cooling systems.

  • Automatic cooling and heating anticipation
  • Vapor filled dual diaphragm sensor element

Standard/Approvals: UL File Number E4436, Guide Number XAPX, Guide Number XAPX, CSA File Number LR1322

Application: For Valves, Motors, Contractors, Electric Heat, Elements, Duct Furnaces, And Fan Coil Units In Heating/Cooling Systems

Brand : Honeywell
Sub Brand : Super Tradeline®
Item Name : Line Voltage Thermostat with Thermometer Locking Cover and Range Stop
Series/Model : T651A
Type : Non-Programmable, Medium-Duty, Heat/Cool
Number Of Heat Stages : 1
Number Of Cool Stages : 1
Display : Analog
Automatic Changeover : Yes
Differential Temperature Range : 2 deg F
Setting Temperature Range : 44 - 86 deg F
Batteries Included : No
Power Source : Hardwired
Voltage Rating : 120/208/240/277 VAC
Amperage Rating : 22 A at 120 - 240 VAC, 19 A at 277 VAC Resistive
Frequency Rating : 50/60 Hz
Contact Rating : 9.8 A AFL/58.8 A ALR at 120 VAC, 5.6 A AFA/33.6A ALR at 208 VAC, 4.9 A AFL/29.4 A ALR at 240 VAC, 4.2A AFA/25.2 A ALR at 277 VAC
Switching Action : SPDT
User Interface : Mechanical
Color : Champagne Gold Face-Plate with Beige Cover
Height : 4-1/2 Inch
Width : 2-15/16 Inch
Depth : 1-1/2 Inch
Includes : Vertical Scaleplate with Thermometer, Horizontal Scaleplate with No Thermometer, Range Stops and Locking Screws, Wall Plate, High Accuracy Dual Diaphragm Sensor
